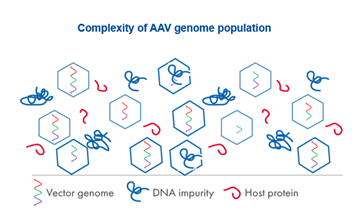

Figure 2. Heterogeneity in AAV genome population: Vector genome, DNA impurities, and host proteins.
Andrzej Noyszewski: While sequencing provides detailed information, it is both time-consuming and costly. Digital PCR offers a faster, cost-effective alternative, particularly in AAV production, where targeted dPCR assays can be employed instead of full sequencing. Both methods are complementary, but dPCR provides rapid and reliable insights.
Alex Deiulio: Another advantage of digital PCR is its high sensitivity. Traditional approaches, such as agarose gel electrophoresis, lack the sensitivity required to detect distinct species within the AAV genome population. Digital PCR, however, excels in this area.
Designing multiplex assays for genome integrity
Moderator: What considerations and challenges arise when designing a multiplex assay for genome integrity analysis?
David Dobnik: The first step is selecting target regions that comprehensively cover the genome. This can be achieved by targeting specific regions, such as promoters and poly-A tails, or by distributing assays across the genome at regular intervals, such as every 1,000 base pairs. It is crucial to include both the 5’ and 3’ ends to ensure a complete assessment of genome integrity.
Another important aspect is oligonucleotide design. Even minor variations in base pairing can significantly impact amplification efficiency, and oligo interactions can be challenging to predict. Although in silico evaluations are useful, real-world testing often reveals unforeseen interactions. Once the assay is optimized, data analysis becomes critical. Initially, digital PCR platforms lacked built-in integrity analysis features, requiring the development of custom analysis methods.
Alex Deiulio: The introduction of multiplexing support and the intactness percentage feature in the QIAGEN QIAcuity dPCR system has significantly improved integrity measurements, making them more streamlined and efficient.
Challenges in integrity analysis
Moderator: What is the most significant challenge in conducting integrity analysis?
Alex Deiulio: Data analysis and managing assay cross-talk present significant challenges. In silico predictions often fail to account for real-world sample variability, leading to signal bleed-through between detection channels. However, recent advancements, including QIAcuity Software v3.1 and cross-talk compensation matrix, have significantly mitigated this issue, improving data clarity.
Andrzej Noyszewski: Precisely. Without appropriate color compensation, cross-talk can lead to misinterpretation of data, particularly for users unfamiliar with the nuances of the analysis. Recent improvements now allow for the design of more sophisticated multiplex assays, extending beyond traditional 3-plex or 4-plex formats.
User expectations for integrity analysis
Moderator: From a user perspective, what are the key expectations for a multiplex assay assessing genome integrity?
Rob Hills: Simplicity and robustness are of utmost importance. Excessive steps introduce variability and compromise precision. When implementing a new assay, we qualify it based on parameters such as precision, accuracy, linearity, and specificity. The latest data analysis package from QIAGEN has greatly streamlined our workflow. Previously, integrity calculations were performed manually; now, the instrument automates this process, enhancing efficiency.
Factors affecting genome integrity in production
Moderator: What factors influence genome integrity during production, and what should be monitored to ensure an intact product?
Rob Hills: Many integrity issues originate from the sequence itself. Promoter regions, which are GC-rich, can form secondary structures, such as short hairpins, that hinder replication. Nicking during replication may also result in non-homologous end-joining. Additionally, the method used during the capsid lysis step, whether employing temperature or Proteinase K, can impact integrity values. Optimization of these factors is essential.
Andrzej Noyszewski: We have observed differences in packaging efficiency between the 5’ and 3’ ends of the genome, which can result in fragmented genomes and impact overall integrity.
Moderator: Agathos has developed a universal AAV standard. How is it designed to enhance utility in integrity analysis testing?
Andrzej Noyszewski: In developing assays for AAV quantification, I sought a reliable approach to assess various assay targets, such as ITR, PolyA, and Promoter. Initially, I explored existing positive controls for AAV but found that none adequately represented the specific assays I was working with. It became clear that having a flexible tool capable of accommodating different assays for a gene of interest would be highly beneficial.
QIAGEN addressed this need by introducing the Cell and Gene Therapy Assays for dPCR, designed for these specific targets. By incorporating these assays, I was able to compare titers across different targets and evaluate their performance under varying conditions, such as differences in AAV lysis or sample preparation methods. The ability to apply multiple assays to a single template allowed for comparative analysis across different products within our laboratory, making the tool highly versatile. Over time, this tool became invaluable not only for titer quantification but also for assessing genomic integrity. By utilizing well-characterized assays across the template, we no longer had to rely solely on the longest fragment for analysis. Instead, we could obtain a more comprehensive and detailed representation of the genome’s integrity.
Additionally, the process of titering can be complex. This standard provides a reliable control for genomic integrity, allowing researchers to validate their calculations with greater confidence. The design also incorporates additional space, enabling future expansion by incorporating other commonly used fragments, thereby increasing its applicability. We have been pleased with its performance, as it provides consistent amplification across the genome while remaining easy to use and adaptable to various analytical needs.
Orthogonal methods for integrity verification
Moderator: What orthogonal methods do you use to validate dPCR results?
David Dobnik: When we initially conducted dPCR integrity assays, we found that only 20% to 40% of genomes were fully intact, despite analytical ultracentrifugation (AUC) measurements indicating that 95% of capsids were full. Through collaboration with AskBio, next-generation sequencing (NGS) data confirmed a strong correlation between genome integrity and potency.
Moderator: Have you observed any correlation between genome integrity and efficacy?
Rob Hills: Yes. When our team presented these findings internally, researchers working on potency assays for the same construct observed similar potency effects. Our results indicated approximately 40% genome integrity, and they noted that this explained much of the potency data observed for the construct. We plan to release a white paper next year, examining different AAV constructs and correlating integrity data with potency and other key metrics.
Measuring full-to-empty capsid ratios
Moderator: How do you measure full-to-empty capsid ratios?
Rob Hills: SK pharmteco is utilizing several methods to evaluate empty to full populations, as well as partials. Depending on the purpose of the measurements, we utilize orthogonal analytical techniques such as analytical ultracentrifugation (AUC), Mass Photometry and SEC-MALS, all demonstrating strong correlation.
Alex Deiulio: For routine assessments, we use digital PCR and ELISA. Recently, we have incorporated UV spectroscopy and dynamic light scattering (DLS) to evaluate additional parameters, such as aggregation.
Moderator: Is there a specific DNAse you recommend for digesting host cell DNA?
Alex Deiulio: We utilize the QIAGEN CGT Viral Vector Lysis Kit, which includes a highly effective DNAse that has produced reliable results. To clarify, when I previously referred to evaluating DNAse options, I was speaking about bulk production applications rather than routine assay workflows.
Rob Hills: In previous programs, we have successfully used Turbo DNAse, which has provided consistent and effective results in our workflows.
Moderator: What part of the dynamic range can be utilized for integrity analysis?
David Dobnik: The usable dynamic range for integrity analysis depends on the platform. QIAGEN digital PCR system, for instance, offers a broad dynamic range due to its specialized analysis features, which account for co-localization in multiplex assays. In contrast, other platforms may have a reduced dynamic range unless specific adjustments are made to correct for co-localization effects.
Learn more about performing vector integrity analysis.
Explore further in this application note on “Analysis of DNA integrity and stability using digital PCR”.
Request a demo of our QIAcuity dPCR instruments to meet your cell and gene therapy needs.
